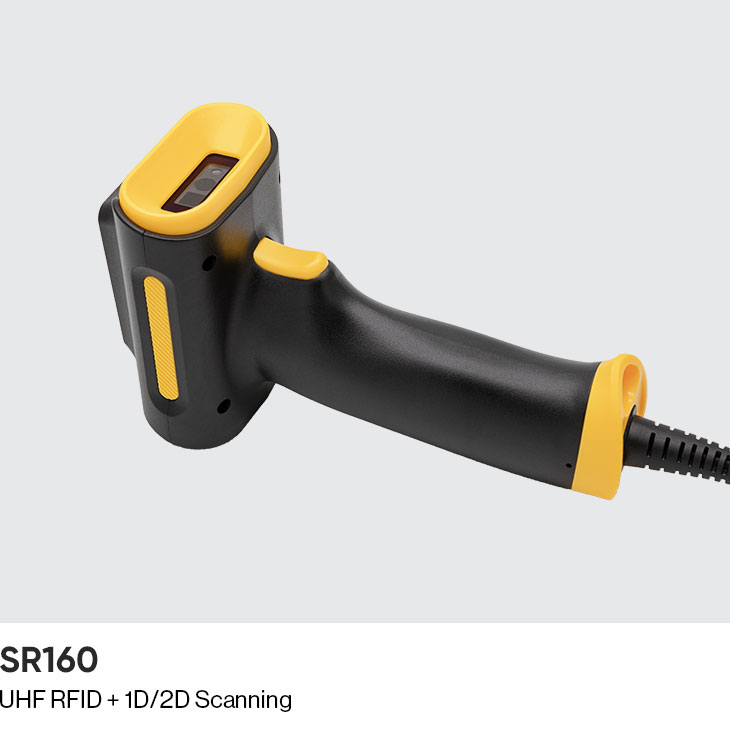

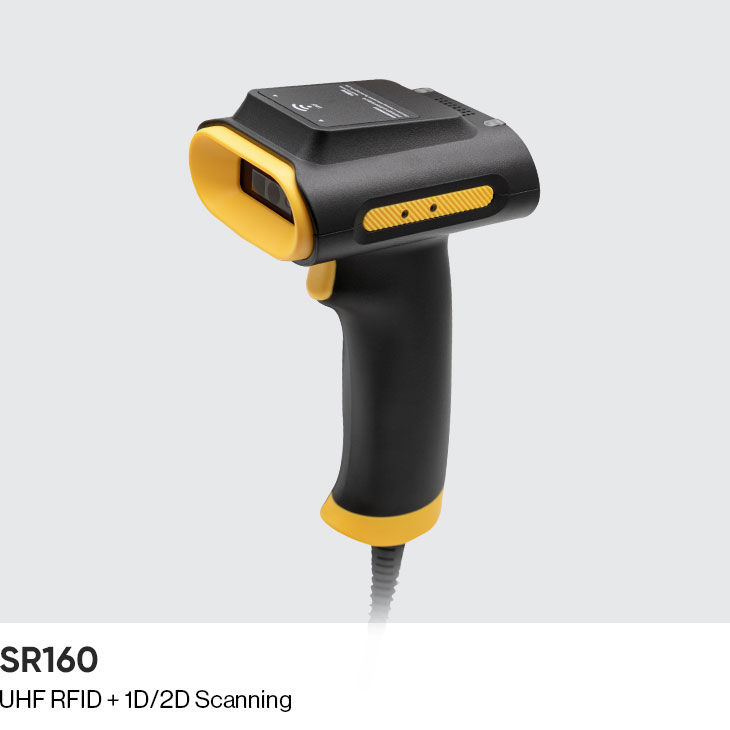

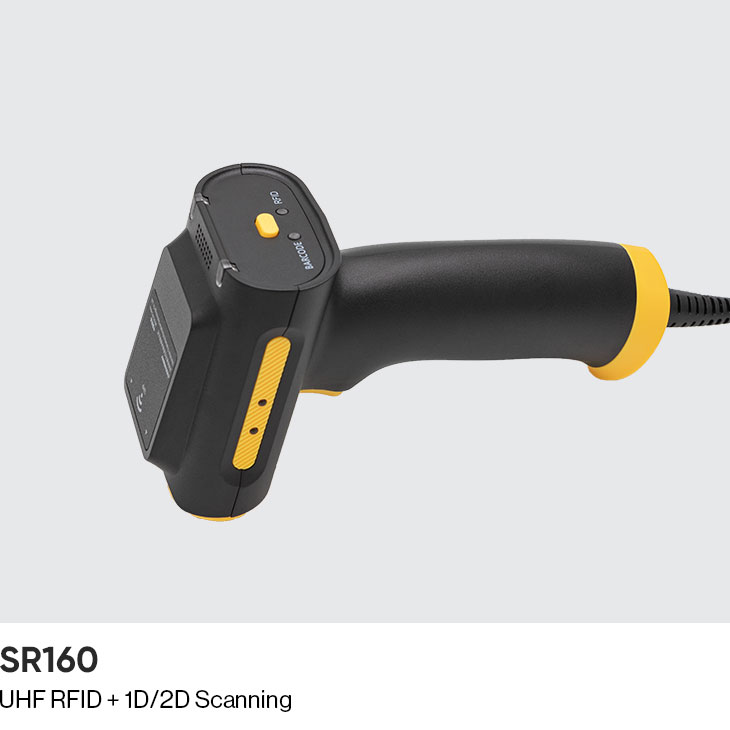

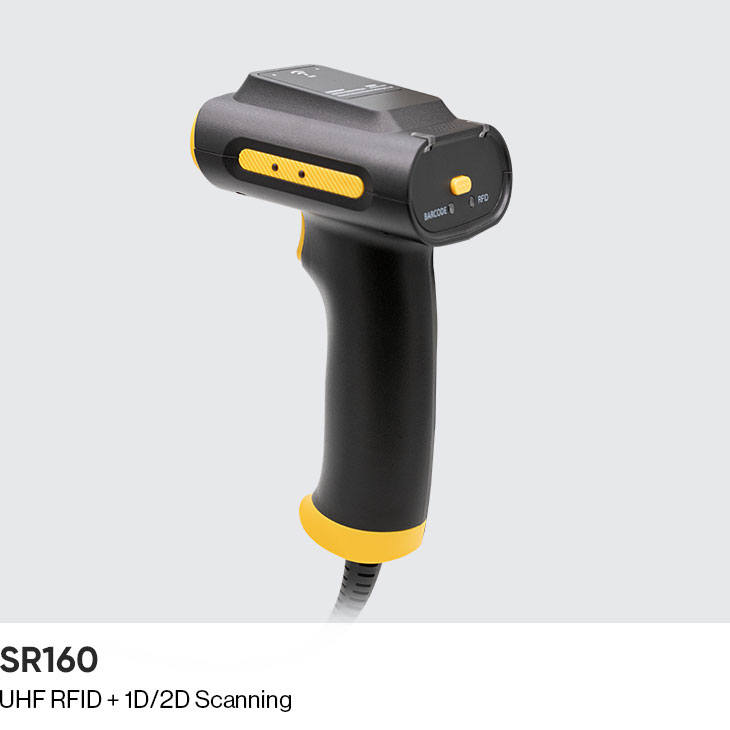

Chainway SR160 UHF RFID Scanner
前
次
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in. |
| Battery | 2600mAh (Wireless Version) |
| Material | Plastic |
| Buzzer | Voice prompt |
| Keypad | Power key / scan key |
| Button | UHF、2D、UHF or 2D |
| Indicator LED | Function: 1 for UHF, 1 for 2D Status: 1 for UHF, 1 for 2D Power: 1 Bluetooth: 1 |
| Comm Interface | RJ45 interface，HID USB |
| Communication | |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 (Wireless Version) |
| User Environment | |
| Drop Specification | 1.5m |
| Barcode Scanning | |
| Scan engine | 2D Scanner |
| Min.Resolution | Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil |
| UHF RFID | |
| Engine | CM-3N module based on Impinj E310 |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Protocol | EPCglobal C1G2 (ISO18000-6C) |
| Antenna | Circular Polarized Antenna |
| Output Power | 1-25dBm |
| Output Power Precision | ±1dBm |
| Output Power Flatness | ±1dBm |
| Max Read Range | >30cm (Tag: Alien H3) |
| Optional Accessories | |

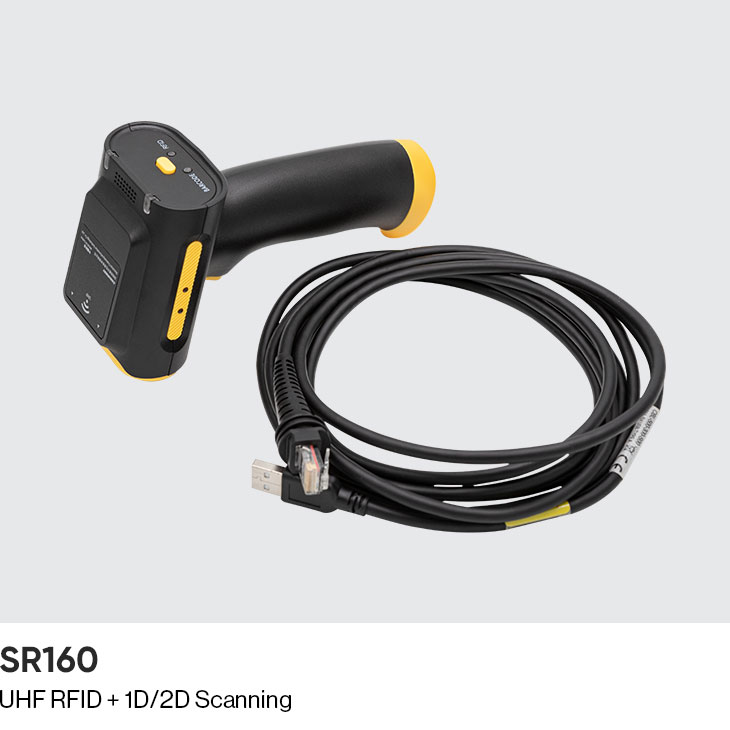

| Accessories | USB Cable:2m, TYPE-A, RJ45 Power Supply: 5V 2A |
